17 - Screw to regulate the Rear Seat

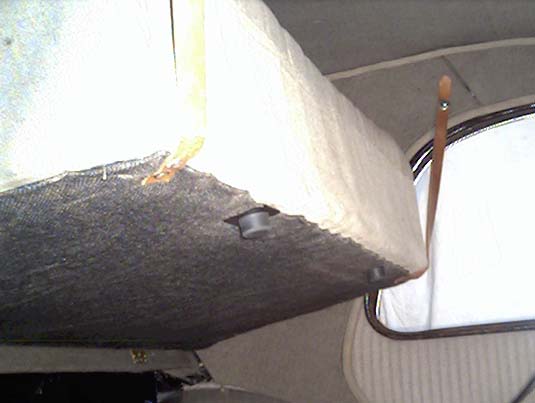

At the purchase, the rear seat was in very good original condition, but the screw to set the position of the back seat was missed. The hole on the wood frame of the seat was present so that the position was identified.

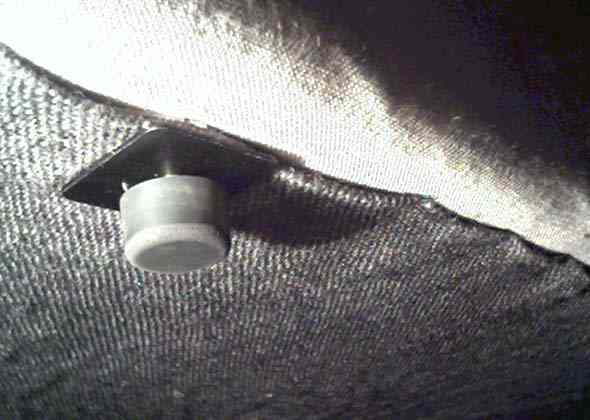

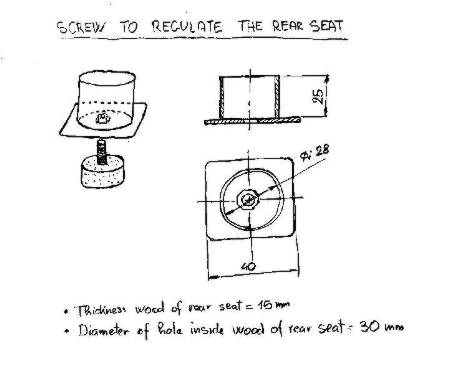

The system is composed by two parts:

- the screw with rubber

- the part with bolt, tobe  inserted inside the wood frame of the seat

The screw is now available on the market (see www.trationavant1934.com) but at the time of restoration was not available. The screw was found at a rubber shop. The part with the bolt which has to be inserted inside the hole of the seat has been refabricated. The outside diameter corresponds to the inside diameter of the hole. Steel thickness 1mm
